8 x 14 Guard Booth-PlanA

8 x 14 Guard Booth-PlanA-Product#: 814GHA

Applications: Guard Shack, Security Booth or Ticket Booth

Note: Price does not include the following: PE Sealed Drawings, State Insignia/Label Program, Concrete Pad/foundation Design.

Pricing will vary per each state and for each location due to the states corresponding codes.

Included Features: 8 x 14 Guard Booth-Plan A

• Out swing door is positioned on the 8′ wall
• 3000 watt wall heater with fan
• 12,000 BTU through wall air conditioner with remote
• Exterior security light over door-LED
• Heavy duty steel base frame with built in fork pockets
• Fully insulated-walls (R-13), roof (R-30), floor (R-12, Rigid)
• Aluminum tread plate floor (over 3/4″ plywood sub floor)
• Aluminum exterior-standard colors-lite gray with dark gray-top/bottom trim
• Out swing steel door-aluminum jamb, 1/2 glass-tempered, stainless hinges, lockset, heavy duty door closer
• Tempered insulated windows (sliding & fixed), double locking, insect screen
• T-grid type ceiling with drop in LED lights-wall switch
• 100 amp Main panel with (3) duplex receptacles, dedicated circuit for heat and a/c
• Counter/desktop, 24″ x 88″-laminated white
• EPDM rubber roof with 3″/6″ overhang
• Custom Options or Additions can be added.

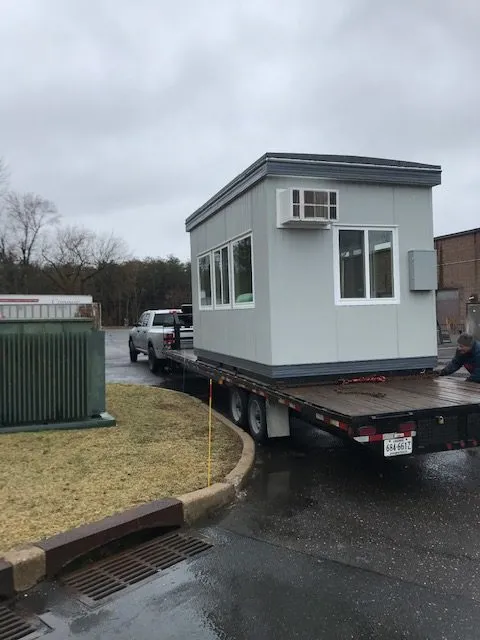

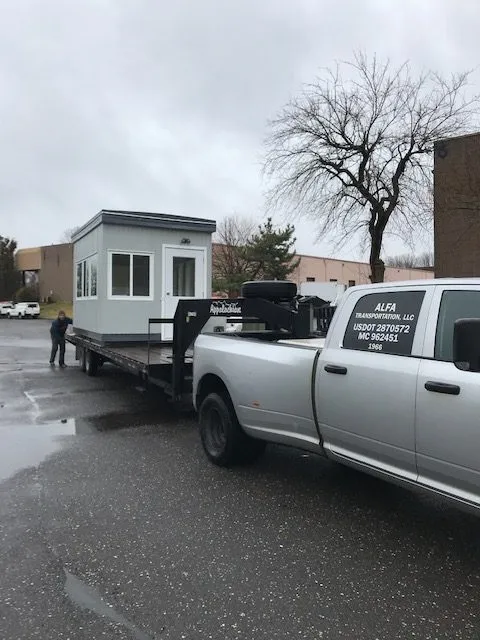

Shipping/Freight: Booth will be delivered on a Flat-bed Trailer: A Forklift is required for off-loading

Tax: New Jersey sales tax will apply for all pickups; For shipments to NJ. and PA applicable sales tax will apply.

All other states-tax will be the responsibility of buyer.
